Product data
| AGITATOR | HP | |
|---|---|---|
| A80100 | 1 AM | 1/2 |
| A80200 | 2 AM(20L) | 3/4 |
| A80200-A | 2 AM(200L) | 3/4 |
| MIXING SHAFT FITTING ELEC GRINDER | |
|---|---|
| A81000 | 10mm Connecting |
| A81000-A | 8mm Connecting |
| A81000-B | 12mm Connecting |
COMPANY
>회사소개>
PRODUCT
>제품소개>
PROMOTION
>홍보센터>
부품
- Accessories
- Air Motor
- Displacement Pump
Accessories
-
A80200-A,A80200,A81000
-
A70028(Handle)
OPTION:For A80200 only
Product data
| SWITCH TIP GUARD | GUN FITTING(F) |
|---|---|
| A93100 | UNF7/8"x14IN |
Product data
| ADAPTOR | ID FITTING(F) | OD FITTING(M) | MATERIAL |
|---|---|---|---|
| A94002-A | UNC11/16F | UNF7/8"M | S45C |
| A94002-B | UNC11/16F | UNF7/8"M | AL |
| A94002-C | M18F | UNF7/8"M | S45C |
Product data

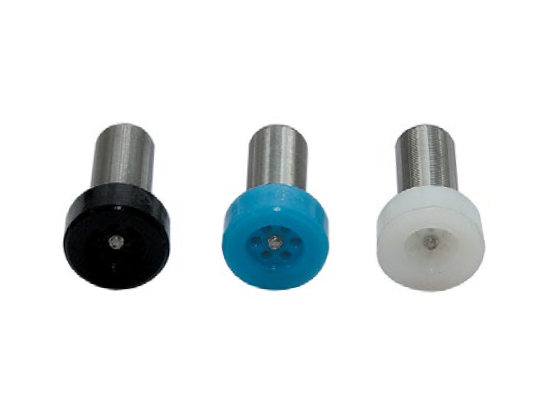

| TIP FILTER | FILTERING(MESH) |
|---|---|
| A92060(-A) | 60# |
| A92080(-A) | 80# |
| A92100(-A) | 100# |
Product data
| GUN FILTER | FILTERING(MESH) |
|---|---|
| A42060 | 60# |
Product data
| SURGE FILTER | FILTERING(MESH) |
|---|---|
| A97060-A | 60# |
| A97080-A | 80# |
| A97100-A | 100# |
Product data
| HOSE NIPPLE | FITTING(M) | FITTING(M) |
|---|---|---|
| A95400-A | NPS1/4"x18IN | NPS1/4"x18IN |
| A95400-B | NPS1/4"x18IN | NPS3/8"x18IN |
| A95400-C | NPS3/8"x18IN | NPS3/8"x18IN |
Product data
| HOSE SWIVEL | FITTING(M) | FITTING(M) |
|---|---|---|
| A95N310-HS | NPS1/4"x18IN | NPS1/4"x18IN |
| A95N320-HS | NPS1/4"x18IN | NPS3/8"x18IN |
| A95N330-HS | NPS3/8"x18IN | NPS3/8"x18IN |
Product data
| GUN SWIVEL | GUN FITTING(M) | HOSE FITTING(M) |
|---|---|---|
| A95N110-GS | NPS1/4"x18IN | NPS1/4"x18IN |
| A95N120-GS | NPS1/4"x18IN | NPS3/8"x18IN |
| A95N120-GS | NPS3/8"x18IN | NPS3/8"x18IN |
| A95100-H | NPT1/2"x18IN | NPT1/2"x18IN |
| Z-SWIVEL | FITTING(M) | FITTING(M) |
| A95N110-GS | NPS1/4"x18IN | NPS1/4"x18IN |
Product data
| G.RPK CODE | DESCRIPTION | G.REFERENCE NO |
|---|---|---|
| PDXR180A | 180cc : UHMWPE+LEATHER | 24F969 |
| PDXR220A | 220cc : UHMWPE+LEATHER | 24F967 |
| PDXR250A | 250cc : UHMWPE+LEATHER | 24F965 |
| PDXR290A | 290cc : UHMWPE+LEATHER | 24F963 |
Product data
| G.RPK CODE | DESCRIPTION | G.REFERENCE NO |
|---|---|---|
| PD000072 | Manifold Filter(Long) #30 [Gray] | 244071 |
| PD000073 | Manifold Filter(Long) #60 [Black] | 244067 |
Product data
| G.RPK CODE | DESCRIPTION | G.REFERENCE NO |
|---|---|---|
| PD000076 | Inline(Gun) Filter #60 [Black] | 287032 |
| PD000077 | Inline(Gun) Filter #100 [Blue] | 287033 |
Product data
| G.RPK CODE | DESCRIPTION | G.REFERENCE NO |
|---|---|---|
| PD000068 | Manifold Filter(Short) #30 [Gray] | 246425 |
| PD000069 | Manifold Filter(Short) #60 [Black] | 246384 |
| PD000070 | Manifold Filter(Short) #100 [Blue] | 246382 |
Product data
| HIGH PRESSURE VALVE / REGULATOR & GAUGE | INLET / OUTLET(F) | |
|---|---|---|
| 45313 | High Pressure Valve | PT1/4"xPT1/4 |
| 45404 | Regulator & Gauge | PT3/4"xPT3/4 |
| 28405 | Regulator & Gauge | PT3/8"xPT3/8 |
Product data
| SANDING NOZZLE | HOSE FITTING(M:MM) | ID Outlet(F:MM) |
|---|---|---|
| A99095 | 32 | 9.5 |
| A99125 | 32 | 12.5 |
| A99140 | 32 | 14 |
Product data
| GUN NOZZLE | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| CODE | A96100-G | A96100-W | A96200 | A96300 | A96300-G | A96300-W | A96400-B | A96400-C | A96500-G | A96500-W |
| GUN FITTING(F) | UNF7/8"x14IN | M18x1.5P | NPS3/8"x18IN(M) | UNF1/2"x20IN | UNF7/8"x14IN | M18x1.5P | UNF1/2"x20IN | UNF1/2"x20IN | UNF7/8"x14IN | M18x1.5 |
| OUTLET FITTING(M) | 11/16"x16IN | UNF7/8"x14IN | ||||||||
| MATERIAL | S45C | AL | ||||||||
| AVAIL. WITH TIP FILTER | Available | Not Available | ||||||||
Product data
| NEW EXTENSION BAR(AL) | OUTLET FITTING(M) | GUN FITTING(F) | LENGTH(MM) |
|---|---|---|---|
| G76090-A1 | M18"x1.5P | UNF7/8"x14IN | 732(13mm) |
| G76150-A1 | M18"x1.5P | UNF7/8"x14IN | 1332(13mm) |
| G76180-A1 | M18"x1.5P | UNF7/8"x14IN | 1632(13mm) |
Product data
| EXTENTION BAR(AL) | OUTLET FITTING(M) | GUN FITTING(F) | LENGTH(MM) |
|---|---|---|---|
| A90015-G | UNC11/16"x16IN | UNF7/8"x14IN | 15(6mm) |
| A90020-G | UNC11/16"x16IN | UNF7/8"x14IN | 20(6mm) |
| A90030-G | UNC11/16"x16IN | UNF7/8"x14IN | 30(6mm) |
| A90040-G | UNC11/16"x16IN | UNF7/8"x14IN | 40(6mm) |
| A90050-G | UNC11/16"x16IN | UNF7/8"x14IN | 50(8mm) |
| A90060-G | UNC11/16"x16IN | UNF7/8"x14IN | 60(8mm) |
| A90070-G | UNC11/16"x16IN | UNF7/8"x14IN | 70(8mm) |
| A90080-G | UNC11/16"x16IN | UNF7/8"x14IN | 80(8mm) |
| A90090-G | UNC11/16"x16IN | UNF7/8"x14IN | 90(8mm) |
| A90100-G | UNC11/16"x16IN | UNF7/8"x14IN | 100(8mm) |
| A90015-W | UNC11/16"x16IN | M18X1.5P | 15(6mm) |
| A90020-W | UNC11/16"x16IN | M18X1.5P | 20(6mm) |
| A90030-W | UNC11/16"x16IN | M18X1.5P | 30(6mm) |
| A90040-W | UNC11/16"x16IN | M18X1.5P | 40(6mm) |
| A90050-W | UNC11/16"x16IN | M18X1.5P | 50(8mm) |
| A90060-W | UNC11/16"x16IN | M18X1.5P | 60(8mm) |
| A90070-W | UNC11/16"x16IN | M18X1.5P | 70(8mm) |
| A90080-W | UNC11/16"x16IN | M18X1.5P | 80(8mm) |
| A90090-W | UNC11/16"x16IN | M18X1.5P | 90(8mm) |
| A90100-W | UNC11/16"x16IN | M18X1.5P | 100(8mm) |
-
A760150
-
A760150-G
-
A760150-A1
Product data
| EXTENTION BAR(AL) | OUTLET FITTING(M) | GUN FITTING(F) | LENGTH(CM) |
|---|---|---|---|
| A760150 | UNC11/16"x16IN | UNF7/8"x14IN | 15 |
| A760300 | UNC11/16"x16IN | UNF7/8"x14IN | 30 |
| A760500 | UNC11/16"x16IN | UNF7/8"x14IN | 50 |
| A761000 | UNC11/16"x16IN | UNF7/8"x14IN | 100 |
| A761500 | UNC11/16"x16IN | UNF7/8"x14IN | 150 |
| A760700 | UNC11/16"x16IN | UNF7/8"x14IN | 70 |
| A761200 | UNC11/16"x16IN | UNF7/8"x14IN | 120 |
| A760150-G | UNF7/8"x14IN | UNF7/8"x14IN | 15 |
| A760300-G | UNF7/8"x14IN | UNF7/8"x14IN | 30 |
| A760500-G | UNF7/8"x14IN | UNF7/8"x14IN | 50 |
| A761000-G | UNF7/8"x14IN | UNF7/8"x14IN | 100 |
| A761500-G | UNF7/8"x14IN | UNF7/8"x14IN | 150 |
| A760700-G | UNF7/8"x14IN | UNF7/8"x14IN | 70 |
| A761500-G | UNF7/8"x14IN | UNF7/8"x14IN | 120 |
| A760150-A1 | UNF7/8"x14IN | UNF7/8"x14IN | 15 |
| A760300-A1 | UNF7/8"x14IN | UNF7/8"x14IN | 30 |
| A760500-A1 | UNF7/8"x14IN | UNF7/8"x14IN | 50 |
| A761000-A1 | UNF7/8"x14IN | UNF7/8"x14IN | 100 |
| A761500-A1 | UNF7/8"x14IN | UNF7/8"x14IN | 150 |
| A760700-A1 | UNF7/8"x14IN | UNF7/8"x14IN | 70 |
| A761200-A1 | UNF7/8"x14IN | UNF7/8"x14IN | 120 |
Product data
| PAINT | HOSE FITTING(F) | LENGTH(M) / W.P(BAR) |
|---|---|---|
| A98400 | NPS1/4"x1/4"18IN | 15/430 |
| A98430 | NPS1/4"x1/4"18IN | 30/430 |
| A98800 | NPS3/8"x3/8"18IN | 15/350 |
| A98830 | NPS3/8"x3/8"18IN | 30/350 |
Product data
| PAINT HOSE | ||||||||
|---|---|---|---|---|---|---|---|---|
| CODE | DESCRIPTION | TYPE | SIZE | PRESSURE(BAR) | WEIGHT(gs) | |||
| ID(mm) | OD(mm) | Conn(inch) | W.P | B.P | ||||
| A98400 | PAINT HOSE 1/4"x15M | 1 Wire | 6.3 | 10.7 | NPS1/4 | 430 | 1350 | 2290 |
| A98800 | PAINT HOSE 3/8"x15M | 1 Wire | 9.5 | 15.3 | NPS3/8 | 350 | 1000 | 3650 |
| A98400-B | PAINT HOSE 1/4"x15M | 1 Wire, 1 Textile | 6.3 | 11.7 | NPS1/4 | 500 | 1550 | 2880 |
| A98800-B | PAINT HOSE 3/8"x15M | 1 Wire, 1 Textile | 9.5 | 17.3 | NPS3/8 | 400 | 1200 | 4680 |
※Flexible yet hard wearing.
※Suitable for Paint spraying. Water jetting, Hydraulics.
※Wire braided reinforcement is of high texsile carbon steel braids which give the hose its great strength and ensure 100% electrical continuity throughout the hose.
※Do not expose these hoses to temperatures above 82℃ or below -40℃
-
1 Wire
-
1 Wire, 1 Textile
Air Motor
-
72100
-
R72100
Product data
| Maru [72100] | |
|---|---|
| AIR PRESSURE RANGE(bar) | 3-7 |
| CYCLE / min | 160 |
| CYLINDER (ID/:mm) | 275 |
| STROKE (mm) | 115 |
| WEIGHT (NET:kgs) | 37 |
| DIMENSION (NET:cm) | 32x32x57 |
| REPAIR KIT | R72100 |
-
68100
-
R68100
Product data
| Mir [68100] | |
|---|---|
| AIR PRESSURE RANGE(bar) | 3-7 |
| CYCLE / min | 50 |
| CYLINDER (ID/:mm) | 254 |
| STROKE (mm) | 120 |
| WEIGHT (NET:kgs) | 36 |
| DIMENSION (NET:cm) | 31x40x56 |
| REPAIR KIT | R68100 |
-
45100
-
R45100
Product data
| Nuri [45100] | |
|---|---|
| AIR PRESSURE RANGE(bar) | 3-7 |
| CYCLE / min | 50 |
| CYLINDER (ID/:mm) | 254 |
| STROKE (mm) | 120 |
| WEIGHT (NET:kgs) | 31 |
| DIMENSION (NET:cm) | 31x31x56 |
| REPAIR KIT | R45100 |
-
55P100
-
R55P100
Product data
| Mirine [55P100] | |
|---|---|
| AIR PRESSURE RANGE(bar) | 3-7 |
| CYCLE / min | 60 |
| CYLINDER (ID/:mm) | 178 |
| STROKE (mm) | 120 |
| WEIGHT (NET:kgs) | 26 |
| DIMENSION (NET:cm) | 28x28x56 |
| REPAIR KIT | R55P100 |
-
28100-W
-
R28100-W
Product data
| Nare [28100-W] | |
|---|---|
| AIR PRESSURE RANGE(bar) | 3-7 |
| CYCLE / min | 60 |
| CYLINDER (ID/:mm) | 153 |
| STROKE (mm) | 100 |
| WEIGHT (NET:kgs) | 9 |
| DIMENSION (NET:cm) | 18x18x37 |
| REPAIR KIT | R28100-W |
-
23100
-
R23100
Product data
| Hemi [23100] | |
|---|---|
| AIR PRESSURE RANGE(bar) | 3-7 |
| CYCLE / min | 60 |
| CYLINDER (ID/:mm) | 108 |
| STROKE (mm) | 80 |
| WEIGHT (NET:kgs) | 4.9 |
| DIMENSION (NET:cm) | 15x15x30 |
| REPAIR KIT | R23100 |
Displacement Pump
-
68200
-
R68200
Product data
| 68200 | 68S200 | |
|---|---|---|
| SLEEVE (ID X L:mm) | 43.6x170 | 43.6x170 |
| CHARACTERISTIC | SEPARATED | SEPARATED/STAINLESS |
| WEIGHT (NET:kgs) | 19.5 | 19 |
| DIMENSION (NET:cm) | 58x25x20 | REPAIR KIT | R68200 | R68S200 |
-
63D200
-
R63D200
Product data
| 63D200 | 45D200 | |
|---|---|---|
| SLEEVE (ID X L:mm) | 45.3x177 | 51.6x177 |
| CHARACTERISTIC | SEPARATED | |
| WEIGHT (NET:kgs) | 21 | 20.5 |
| DIMENSION (NET:cm) | 58x25x20 | REPAIR KIT | R63D200 | R45D200 |
-
63S200
-
R63S200
Product data
| R63200 | 45S200 | |
|---|---|---|
| SLEEVE (ID X L:mm) | 45.3x177 | 51.6x177 |
| CHARACTERISTIC | SEPARATED/STAINLESS | |
| WEIGHT (NET:kgs) | 20 | 19.5 |
| DIMENSION (NET:cm) | 58x25x20 | REPAIR KIT | R63S200 | R45S200 |
-
63200
-
R63200
Product data
| 63200 | 45200 | |
|---|---|---|
| SLEEVE (ID X L:mm) | 45.3x181.80 | 51.6x177.4 |
| CHARACTERISTIC | GENERAL | |
| WEIGHT (NET:kgs) | 18.5 | 21 |
| DIMENSION (NET:cm) | 62x25x20 | REPAIR KIT | R63200 | R45200 |
-
23200
-
R23200
Product data
| 28200 | 23200 | |
|---|---|---|
| SLEEVE (ID X L:mm) | 27.8x150 | 21.4x150 |
| CHARACTERISTIC | GENERAL | |
| WEIGHT (NET:kgs) | 4.5 | 4.7 |
| DIMENSION (NET:cm) | 46x10x12 | REPAIR KIT | R28200 | R23200 |
-
28S200
-
R28S200
Product data
| 68200 | |
|---|---|
| SLEEVE (ID X L:mm) | 27.8x150 |
| CHARACTERISTIC | STAINLESS |
| WEIGHT (NET:kgs) | 4.5 |
| DIMENSION (NET:cm) | 46x10x12 | REPAIR KIT | R28S200 |
-
10200
-
R10200
Product data
| 10200 | |
|---|---|
| SLEEVE (ID X L:mm) | 49.3x162 |
| CHARACTERISTIC | SEPARATED |
| WEIGHT (NET:kgs) | 7.5 |
| DIMENSION (NET:cm) | 46x11x14 | REPAIR KIT | R10200 |
-
HX-serise
-
HX-serise
Product data
| 68200-HX | 56200-HX | 45200-HX | 40200-HX | |
|---|---|---|---|---|
| SLEEVE (ID X L:mm) | 43.8x188 | 47.8x195 | 51.5x195 | 55.2x195 |
| CHARACTERISTIC | SEPARATED | |||
| WEIGHT (NET:kgs) | 23.5 | 26 | 28 | 30.5 |
| DIMENSION (NET:cm) | 50x26x22 | REPAIR KIT | R68200-HX | R56200-HX | R45200-HX | R40200-HX |
