Feed Pump with Automated facility line

Features

Applicable material viscosity range from 10,000 to 1,000,000cps with constant ratio Suitable for automation application and constant production line 55Gallon pail can type Grease, RTV Silicone, etc

Semi - Automation facility
Automation facility

KENEX600

Series Feed Pump mounted on the Ram Extruder

E70120A

E70120A

Pressure ratio	70:1
Flow rate/min (liter)	12
Max. Pressure (Mpa)	49.5
Range of air pressure (Mpa)	0.3~0.7
Wetted parts	Stainless steel, Carbon steel, WC, UHMWPE, PTFE, FKM
Dimension (cm)	102x67x230
Weight (kg)	250

FEATURES

KENEX Series Air-Motor has unique anti-icing and easier maintenance function due to modularized structure, we are sure, it’s advantages also have reliable performance to be more efficient Lower noise & Auto-stop function by only pneumatic circuit without any electric supply. It’s easy and convenient under comfortable working condition to handle various high viscosity materials Anti-Icing for frozen or icing at the exhaust line and part, you can use the Ice-breaking valve to remove the icing Max. output. Ideal for feeding something special high viscosity material or longer outlet flow line required from facility design

E70120B

E70120B

Pressure ratio	70:1
Flow rate/min (liter)	12
Max. Pressure (Mpa)	49.5
Range of air pressure (Mpa)	0.3~0.7
Wetted parts	CS, Tungsten carbide, PTFE, PU, UHMWPE, NBR
Dimension (cm)	75x50x130
Weight (kg)	170

FEATURES

KENEX Series Air-Motor has unique anti-icing and easier maintenance function due to modularized structure, we are sure, it’s advantages also have reliable performance to be more efficient Lower noise & Auto-stop function by only pneumatic circuit without any electric supply. It’s easy and convenient under comfortable working condition to handle various high viscosity materials Anti-Icing for frozen or icing at the exhaust line and part, you can use the Ice-breaking valve to remove the icing Max. output. Ideal for feeding something special high viscosity material or longer outlet flow line required from facility design

KENEX600 Air Motor

Effective area 600㎠ Air pressure range 1-7bar Inlet port 3/4" Stroke 120mm Noise level 60~80dB(A) Anti Icing. No condensate pooling in cylinder. Easy servicing due to modular structure. Low Noise. Minimal pulsation on changeover.
Intergrated Control Panel

More Convenient Panel Easy User Interface
HV200 Mastic Pump

Flow rate/cycle 200cc Max. working pressure 500bar(7,250psi) Outlet port 1" Mechanical Seal Structure(No Ball). Long seal life and durability Easy servicing(Multipurpose wrench). Minimal Pulsation on changeover.

KENEX100

Series Feed Pump mounted

C22050B

C22050B

Pressure ratio	22:1
Flow rate/min (liter)	5
Max. Pressure (Mpa)	15.4
Range of air pressure (Mpa)	0.3~0.7
Wetted parts	CS, PTFE, PU, UHMWPE, NBR
Dimension (cm)	45x53x92
Weight (kg)	80

FEATURES

KENEX Series Air-Motor has unique anti-icing and easier maintenance function due to modularized structure, we are sure, its advantages also have reliable performance to be more efficient Lower noise & Compact size & Portable convenience. It’s easy and convenient under comfortable working condition to handle various high viscosity materials Special design to prevent turning risk when the pump will be lifted up to remove the empty pai Anti-Icing for frozen or icing at the exhaust line and part, you can use the Ice-breaking valve to remove the icing Structural seal-mate valve both sides(material inlet and piston valve), Not ball type valve, it can make reliable valve checking even if something special viscosity material should be transfered

E22050B

E22050B

Pressure ratio	22:1
Flow rate/min (liter)	5
Max. Pressure (Mpa)	15.4
Range of air pressure (Mpa)	0.3~0.7
Wetted parts	CS, PTFE, PU, UHMWPE, NBR
Dimension (cm)	75x50x84
Weight (kg)	110

FEATURES

KENEX Series Air-Motor has unique anti-icing and easier maintenance function due to modularized structure, we are sure, it’s advantages also have reliable performance to be more efficient Lower noise & Auto-stop function by only pneumatic circuit without any electric supply. It’s easy and convenient under comfortable working condition to handle various high viscosity materials Anti-Icing for frozen or icing at the exhaust line and part, you can use the Ice-breaking valve to remove the icing Max. output. Ideal for feeding something special high viscosity material or longer outlet flow line required from facility design

KENEX100 Air Motor

Effective area 100㎠ Air pressure range 3-7bar Inlet port 3/8" Stroke 60mm Noise level 60~80dB(A) Weight 6.8kgs Anti Icing. No condensate pooling in cylinder. Easy servicing due to modular structure. Low Noise.
Hv50 Feed Pump

Flow rate/cycle 50cc Max. working pressure 400bar(5,800psi) Outlet port 3/4" Weight 13kgs Mechanical Seal Structure(No Ball). Long seal life and durability. Minimal Pulsation on changeover. Reliable performance.

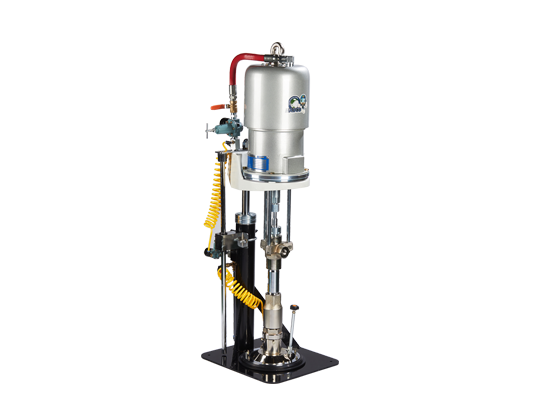

PRO-RAM serise

A model showing maximum performance in high pressure fluid processing

20P000

20P0000

Pressure ratio	20:1
Flow rate/min (liter)	4.5
Max. Pressure (Mpa)	14
Range of air pressure (Mpa)	0.3~0.7
Wetted parts	CS, PTFE, PU, UHMWPE, NBR
Dimension (cm)	60x44x125
Weight (kg)	85/109

40P000

40P000

Pressure ratio	40:1
Flow rate/min (liter)	7.5
Max. Pressure (Mpa)	28
Range of air pressure (Mpa)	0.3~0.7
Wetted parts	CS, Tungsten carbide, PTFE, PU, UHMWPE, NBR
Dimension (cm)	60x44x125
Weight (kg)	94/118

55P000

55P000

Pressure ratio	50:1
Flow rate/min (liter)	5.7
Max. Pressure (Mpa)	35
Range of air pressure (Mpa)	0.3~0.7
Wetted parts	CS, PTFE, PU, UHMWPE, NBR
Dimension (cm)	60x44x143
Weight (kg)	104/128

Information

It is the equipment for facilitating accurate control and efficient fluid flow of single component sealant, adhesive or high viscosity paint in a container (drum).

Product data

		PRO-Mirine 551P 55P000	PRO-Mirine 401P 40P000	PRO-Nare 201P 20P000
STANDARD SPECIFICATION	AIR MOTOR	55P100		28100-W
	DIS-PUMP	55P200	40E200	20P200
	RAM	55P300	40P300	20P300
	REGULATOR	55P400 (3/4" R)		20P400 (3/8" R)
FLUID PRESSURE RATIO		50:1	40:1	20:1
CYCLE/min		50		60
DELIVERY/cycle (cc)		90.65	126.16	90.65
DELIVERY/min (liter)		4.53	6.30	5.44
MAX. PRESSURE (bar)		350	280	140
AIR PRESSURE RANGE (bar)		3-7
STROKE (mm)		120		100
WEIGHT (NET/PACKING:kgs)		104/128	94/118	85/109
DIMENSION (NET/PACKING:cm)		60X44X143/85X77X155	60X44X125/85X77X142
TYPICAL FLUID HANDLED		VISCOUS MATERIALS
MAX. LOADAGE (20FT/40FT:Unit)		20/42

PRO-RAM serise

A model showing maximum performance in high pressure fluid processing

40E000

40E000

Pressure ratio	40:1
Flow rate/min (liter)	7.5
Max. Pressure (Mpa)	28
Range of air pressure (Mpa)	0.3~0.7
Wetted parts	CS, Tungsten carbide, PTFE, UHMWPE, PU, NBR
Dimension (cm)	84x50x136
Weight (kg)	130/154

55E000

55E000

Pressure ratio	55:1
Flow rate/min (liter)	12
Max. Pressure (Mpa)	38.5
Range of air pressure (Mpa)	0.3~0.7
Wetted parts	CS, Tungsten carbide, PTFE, UHMWPE, NBR
Dimension (cm)	102x78x158
Weight (kg)	250/300

55E000-M

55E000-M

Pressure ratio	55:1
Flow rate/min (liter)	12
Max. Pressure (Mpa)	38.5
Range of air pressure (Mpa)	0.3~0.7
Wetted parts	CS, Tungsten carbide, PTFE, UHMWPE, NBR
Dimension (cm)	102x78x158
Weight (kg)	250/300

55E000-D

55E000-D

Pressure ratio	55:1
Flow rate/min (liter)	12
Max. Pressure (Mpa)	38.5
Range of air pressure (Mpa)	0.3~0.7
Wetted parts	CS, Tungsten carbide, PTFE, UHMWPE, NBR
Dimension (cm)	84x50x136
Weight (kg)	150/174

55E000-DM

55E000-DM

Pressure ratio	55:1
Flow rate/min (liter)	12
Max. Pressure (Mpa)	38.5
Range of air pressure (Mpa)	0.3~0.7
Wetted parts	CS, Tungsten carbide, PTFE, UHMWPE, NBR
Dimension (cm)	84x50x136
Weight (kg)	150/174

65E000-D

65E000-D

Pressure ratio	65:1
Flow rate/min (liter)	15
Max. Pressure (Mpa)	45.5
Range of air pressure (Mpa)	0.3~0.7
Wetted parts	CS, Tungsten carbide, PTFE, UHMWPE, NBR
Dimension (cm)	84x50x136
Weight (kg)	160/184

Information

It is the equipment for facilitating accurate control and efficient fluid flow of single component sealant, adhesive or high viscosity paint in a container (drum).

Product data

		PRO-Mirine 40E000	PRO-Mirine 55E000 / 55E000-M	PRO-Mirine 55E000-D / 55E000-DM	PRO-Mirine 65E000-D
STANDARD SPECIFICATION	AIR MOTOR	55P100	45100 / 68100	45100 / 68100	72100
	DIS-PUMP	40E200	55E200	55E200	HV200
	RAM	40E300	55E300	40E300
	REGULATOR	55E400 (3/4" R)
FLUID PRESSURE RATIO		40:1	55:1		65:1
CYCLE/min		50
DELIVERY/cycle (cc)		126.16	200		280
DELIVERY/min (liter)		6.30	10		15
MAX. PRESSURE (bar)		280	385		455
AIR PRESSURE RANGE (bar)		3 ~ 7
STROKE (mm)		120
WEIGHT (NET/PACKING:kgs)		130 / 154	249 / 300	150 / 174	160 / 184
DIMENSION (NET/PACKING:cm)		84x50x136 / 85x77x142	102x78x158 / 115x90x180	84x50x136 / 85x77x155
TYPICAL FLUID HANDLED		VISCOUS MATERIALS
MAX. LOADAGE (20FT/40FT:Unit)		20/42	12/24	20/42

OPTION

Intergrated Control Box

More Convenient Panel Easy User Interface Effective Facilities
